Bookmarks, ranges, merge and split

Put text at a named place with bookmarks, work on a span of content with DocumentRange, and combine or divide whole documents. Styles, numbering, bookmarks and images are renamed where they would collide.

Bookmarks

using DocWright;
using DocWright.Dom;
using DocWright.Dom.Editing;

using WordDocument cover = converter.Load(File.OpenRead("cover-letter.docx"));

foreach (BookmarkReference mark in cover.FindBookmarks())
{
    Console.WriteLine($"Bookmark: {mark.Name}");
}

BookmarkReference? recipient = cover.FindBookmark("recipient");
recipient?.ReplaceContent("Ms Tipene");                          // replaces what the bookmark covers
recipient?.InsertText(",", BookmarkInsertPosition.After);        // and adds text after it

Console.WriteLine(cover.GetText().Split('\n')[0]);
Call Does
FindBookmark(name), FindBookmarks() Finds bookmarks anywhere under the node.
bookmark.ReplaceContent(text) Replaces what the bookmark covers. The bookmark stays, around the new text.
bookmark.InsertText(text, position) Inserts before, at the start of, at the end of, or after the bookmark.
bookmark.Insert(inlines, position) Inserts any inline content.
bookmark.DeleteContent() Removes what the bookmark covers.
Note

paragraph.AppendBookmark(name) adds an empty bookmark at the end of the paragraph, a point to insert at later. To bookmark existing text, wrap it with a range: DocumentRange.FromInlines(first, last).Bookmark(name), as the sample does.

Ranges

A DocumentRange spans inlines (FromInlines(start, end)) or blocks (FromBlocks(start, end)):

Call Does
range.ApplyFormatting(format), range.ApplyStyle(id) Formats everything in the range.
range.CopyTo(paragraph) Deep-copies the content.
range.MoveTo(paragraph) Moves it, keeping one parent per node.
range.Bookmark(name) Wraps the range in a new bookmark.

Node identity

Every node has a NodeId, its identity within the document. Keep it, and WordDocument.FindNode gives the node back after any edits elsewhere:

using DocWright.Dom;
using DocWright.Dom.Editing;

using var document = new WordDocument();
Section section = document.AppendSection();
Paragraph intro = section.AppendParagraph("Introduction");
Paragraph body = section.AppendParagraph("Body text.");

DomNodeId id = body.NodeId;                       // assigned on first read
Console.WriteLine($"body is {id}");

section.Blocks.Insert(0, new Paragraph());        // edits elsewhere leave it alone
intro.Remove();
Console.WriteLine($"still {body.NodeId}, found: {document.FindNode(id) == body}");

body.Remove();                                    // removed: the id names nothing
Console.WriteLine($"after Remove: {document.FindNode(id)?.ToString() ?? "null"}, detached id: {body.NodeId}");

section.Blocks.Add(body);                         // put back: same id again
Console.WriteLine($"put back: {body.NodeId}, found: {document.FindNode(id) == body}");

var copy = (Paragraph)body.Clone();               // a clone has an id of its own
section.Blocks.Add(copy);
Console.WriteLine($"clone: {copy.NodeId}");

Output

body is n1
still n1, found: True
after Remove: null, detached id: none
put back: n1, found: True
clone: n2
  • Assigned on first read, in read order, so the same reads of a document give the same ids.
  • Stable while the node is in its document, through edits around it and when it moves within the document. A detached node has DomNodeId.None. Put back, it has its old id again, as long as you held it in between: the document references its nodes weakly.
  • Per document instance, and never saved. Look an id up only in the document it came from: a clone counts from one too.
  • NodeId, not Id. Note.Id and BookmarkStart.Id are Word's own ids from the file.

Merge and split

using DocWright;
using DocWright.Dom;
using DocWright.Dom.Editing;

// Append the report to the cover letter. Styles, numbering, bookmarks and images
// that would collide are renamed; the source can be disposed afterwards.
using (WordDocument report = converter.Load(File.OpenRead("quarterly-report.docx")))
{
    cover.Merge(report, new MergeOptions { StyleConflict = StyleConflictResolution.KeepSource });
}

Console.WriteLine($"Sections after merge: {cover.Sections.Count}");

// Split the report back out: one section, starting at section index 1.
using WordDocument reportOnly = cover.Split(firstSectionIndex: 1, sectionCount: 1);

using (FileStream combined = File.Create("letter-and-report.pdf"))
{
    converter.Convert(cover, combined);
}

Output

Bookmark: recipient
Dear Ms Tipene,
Sections after merge: 2
letter-and-report.pdf · pages 1 and 2
Page 1: the cover letter addressed to Ms TipeneThe cover letter

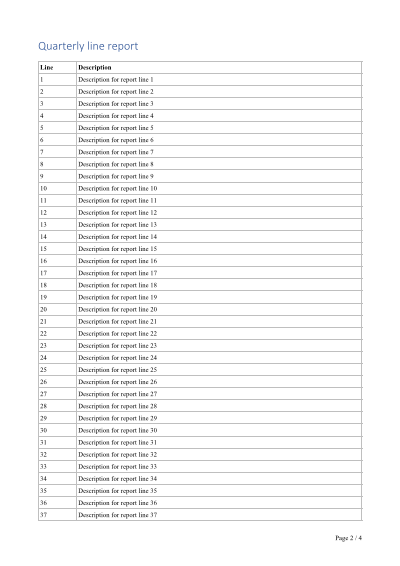

Page 2: the report, keeping its own stylesThe merged report
  • destination.Merge(source, options) appends the source's sections. Every identifier that would collide is rewritten: styles, list definitions, bookmarks, notes, relationships and images. The source can be disposed immediately afterwards.
  • MergeOptions.StyleConflict decides what happens when both documents define a style with the same id. UseDestination (the default) formats the incoming content with the destination's style. KeepSource renames the incoming style so the merged content looks as it did. ImportHeadersAndFooters brings the source's headers and footers along.
  • document.Split(firstSectionIndex, sectionCount) returns a new document holding a copy of those sections, with their styles and resources.
Note

These combine Word documents before rendering. To combine existing PDF files, see Delete, extract, reorder, merge and split PDF pages.

Deleting a bookmark whose ends are in different paragraphs joins the two paragraphs, just as selecting across a paragraph break and pressing Delete does in Word.
