Tutorial: Design and test rules in the visual builder

The RuleWright rule builder is a web page where you design a rule by wiring nodes on a canvas. It runs the real RuleWright engine, compiled to WebAssembly, so when it tests or validates a rule you get the same result your application will. This tutorial takes one of the example documents, changes it, tests it against two facts, catches a mistake and exports the JSON.

RuleWright 10 minutes Runs in the browser, nothing to install

You will learn to:

• read a rule document as a graph, and edit it node by node
• test a rule against a fact and read the trace to see why it fired or didn't
• validate a draft and export the JSON your application loads
• see how a decision table runs as a set of rules

Open the builder in another tab and follow along.

Step 1: Load an example

Pick 01-quickstart-single-rule.json from the Load example… list. The list holds the same 21 documents as Example documents.

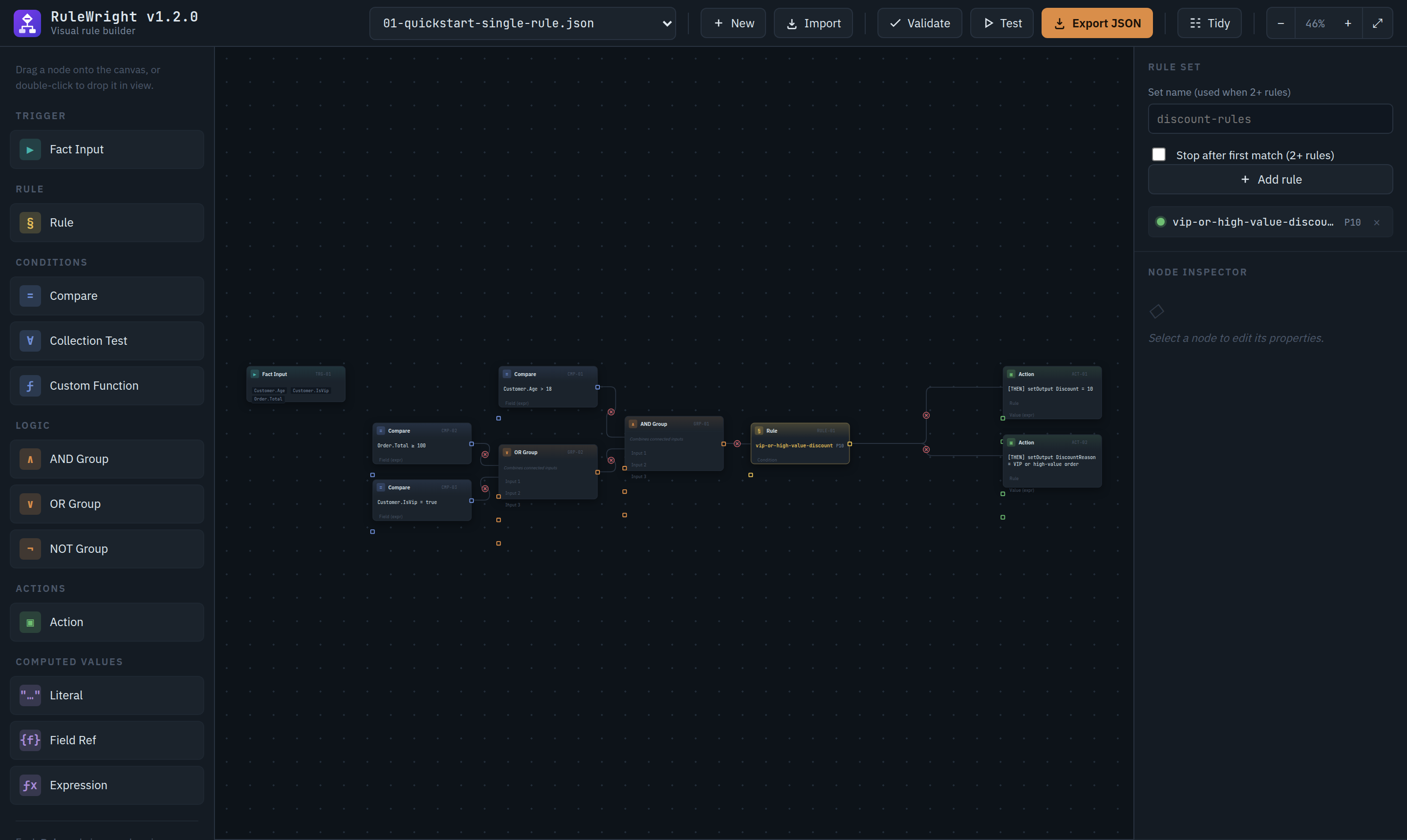

albahadly.github.io/rulewright

The palette of node types is on the left, the canvas in the middle, and the rule set and the node inspector on the right.

The graph is the rule document, read from left to right:

On the canvas	In the JSON
Compare nodes: Customer.Age > 18, Order.Total ≥ 100, Customer.IsVip = true	Conditions: { "field", "operator", "value" }
OR Group and AND Group nodes	{ "type": "group", "operator": "OR" } and "AND", with the wired nodes as its rules
The Rule node, vip-or-high-value-discount, P10	The rule's id and priority. The node wired into its Condition pin is the rule's condition
The two Action nodes	actions: setOutput Discount = 10 and setOutput DiscountReason

So the rule reads: customers over 18 who either spend at least 100 or are a VIP get 10% off. You design a new rule the same way. Drag nodes from the palette, or double-click one, then wire each output pin to the next node's input.

Step 2: Edit a node

Click the Order.Total ≥ 100 node. The Node inspector shows its field path, operator and value. Change Value (constant) to 150. The node updates as you type.

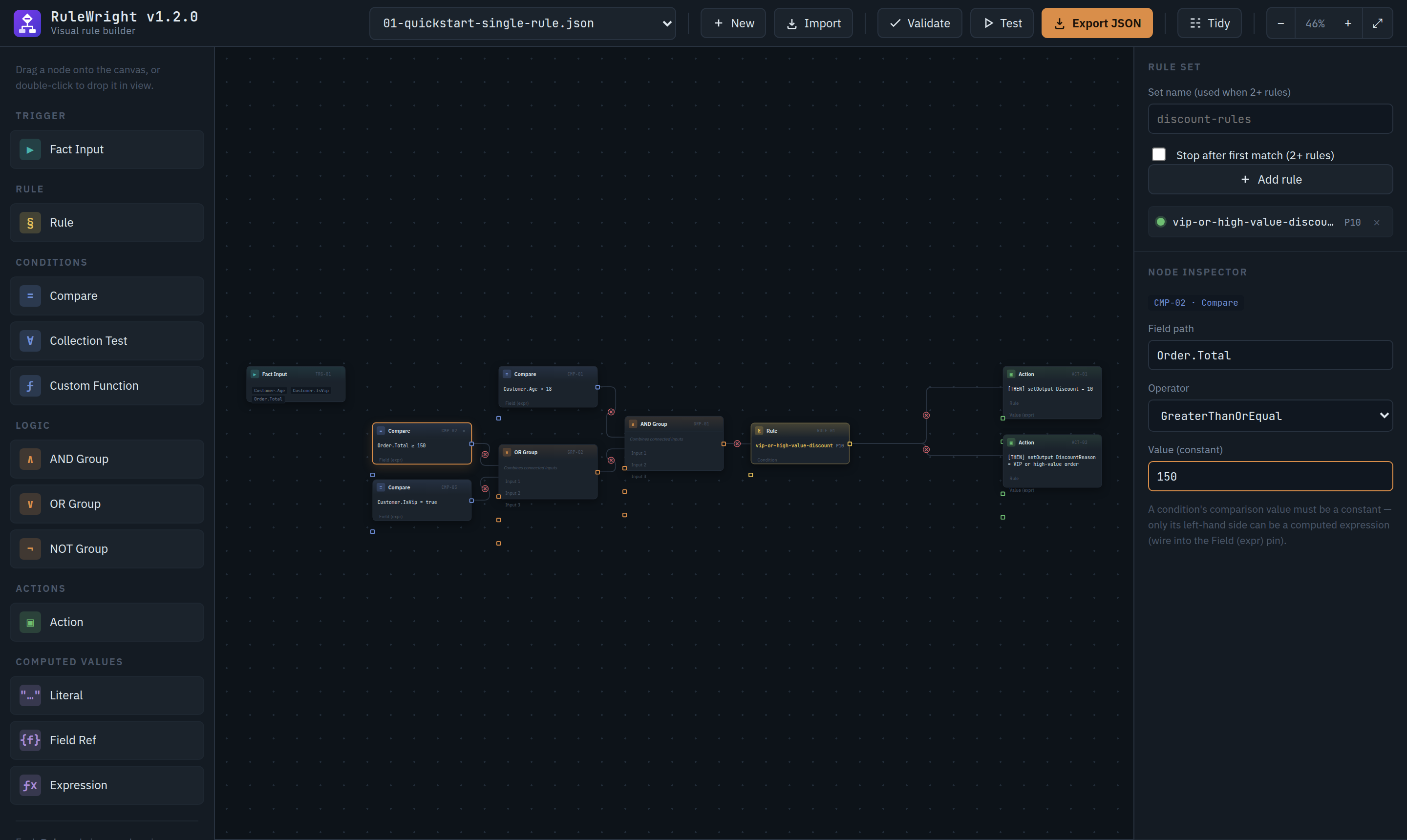

albahadly.github.io/rulewright

The operator is picked from a list, so a typo in an operator name can't get into the document.

Step 3: Test it against a fact

Click Test. The builder opens a sample fact: a 34-year-old VIP with a 120 order. Edit it here to try any case. Its paths match the rule's field paths (Customer.Age, Order.Total).

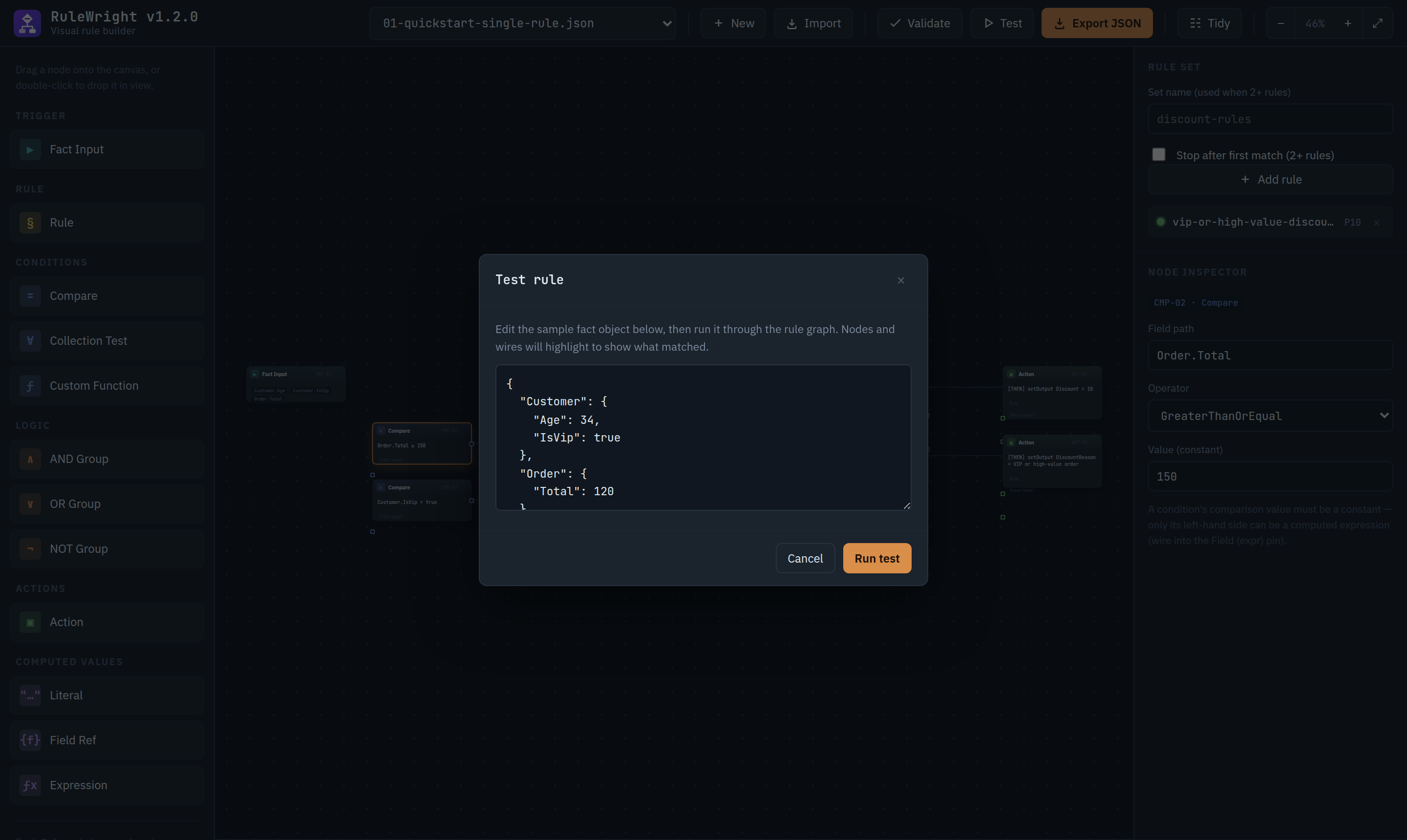

albahadly.github.io/rulewright

Click Run test. The engine evaluates the rule, the canvas highlights the path the evaluation took, and the Trace tab explains each condition:

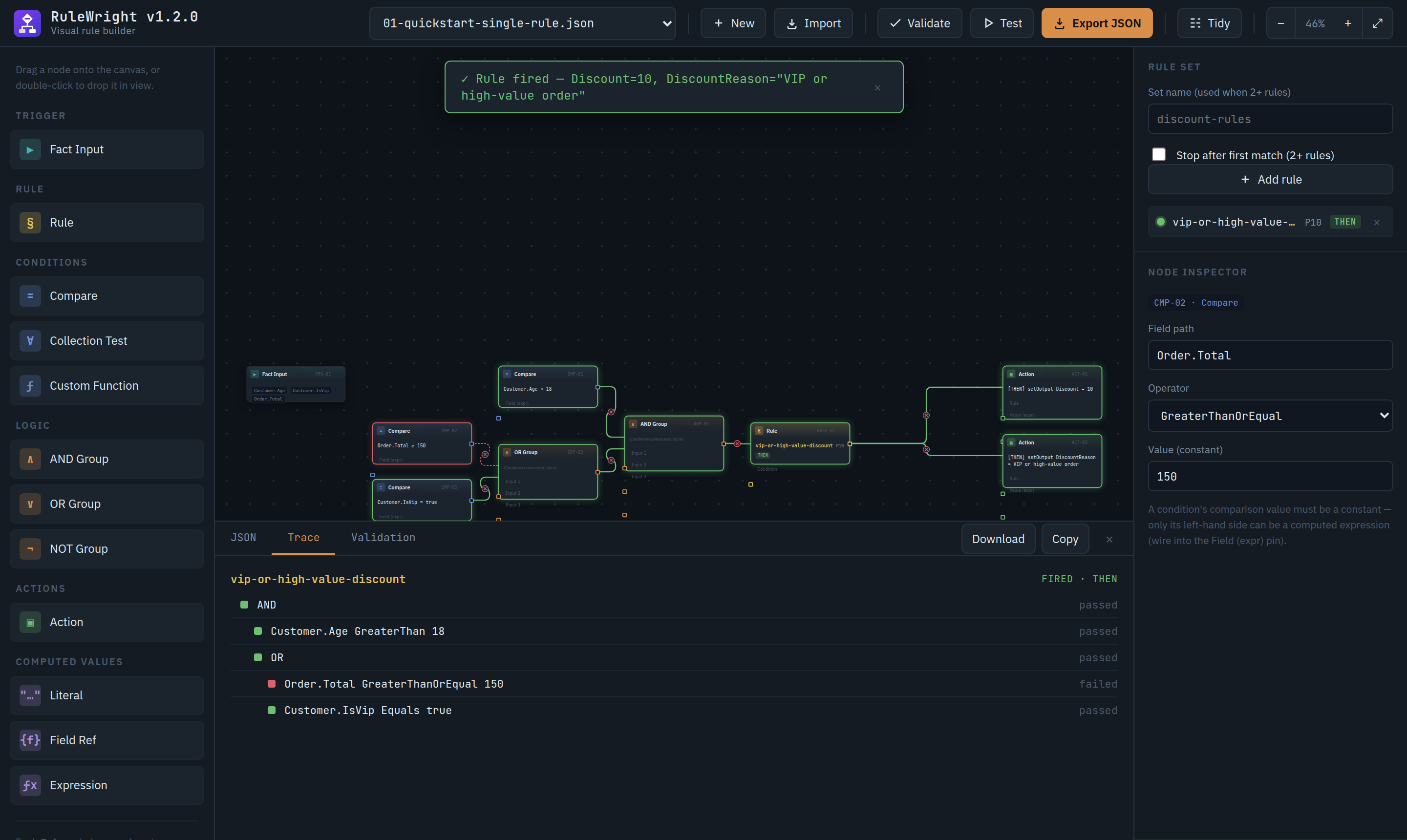

albahadly.github.io/rulewright

The rule fired and wrote both outputs. The trace shows why: the order is under 150 now, but the customer is a VIP, so the OR still passes.

The banner shows the outputs the rule wrote, the same values result.Outputs holds in your application. The trace is the one tracing records.

Step 4: Test the case that shouldn't match

A test that only ever passes proves little. Run the test again with "IsVip": false, keeping the order at 120:

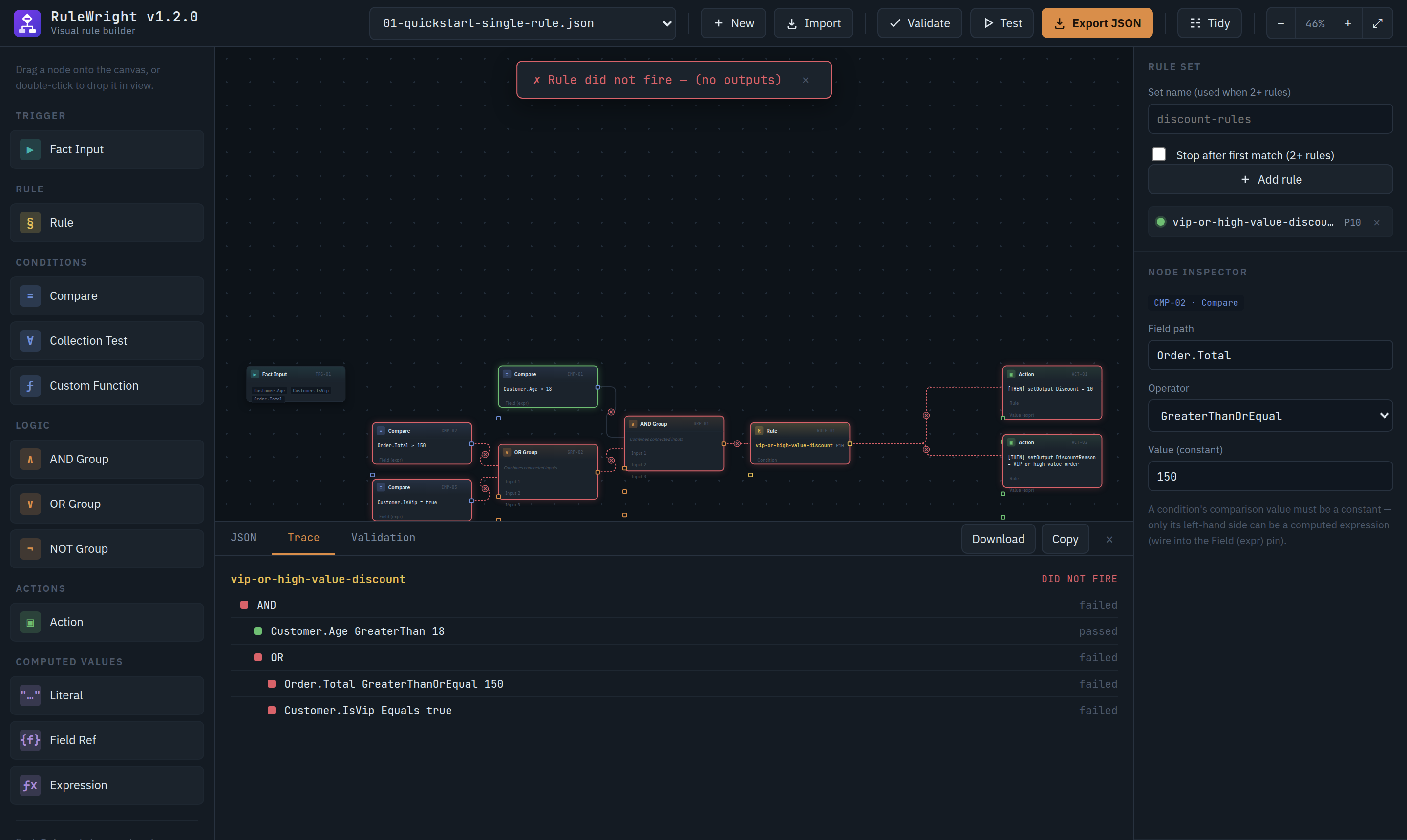

albahadly.github.io/rulewright

Before the edit, a 120 order was enough. Now it isn't, and the trace points at the exact comparison that changed the outcome.

Try the boundary too: with "Total": 150 the rule fires again, because the operator is GreaterThanOrEqual. Every threshold deserves a case on each side of it. Test your rule documents turns cases like these into tests that run in CI.

Step 5: Validate

Mistakes happen while you edit. To see what validation reports, clear the Field path of the Customer.Age > 18 node and click Validate:

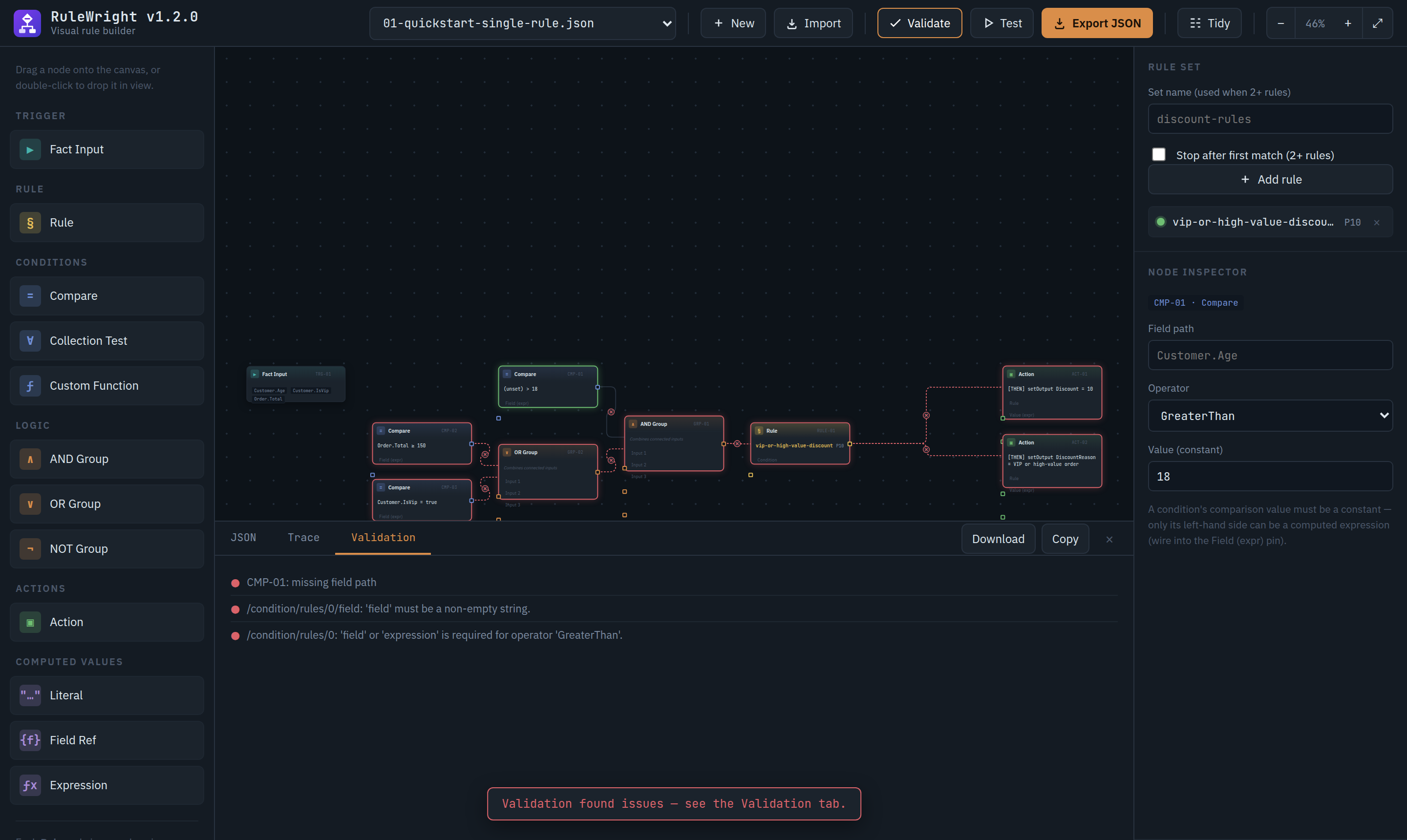

albahadly.github.io/rulewright

The first line comes from the builder and names the node. The other two come from the engine's validator, each with a JSON pointer into the document.

The engine's messages are the ones engine.Validate(json) returns in your application, so a document that validates here validates there too. See Validate documents. Put the field path back to Customer.Age before you continue.

Step 6: Export the JSON

Click Export JSON. The JSON tab shows the document the canvas describes. Download saves it as a file and Copy puts it on the clipboard.

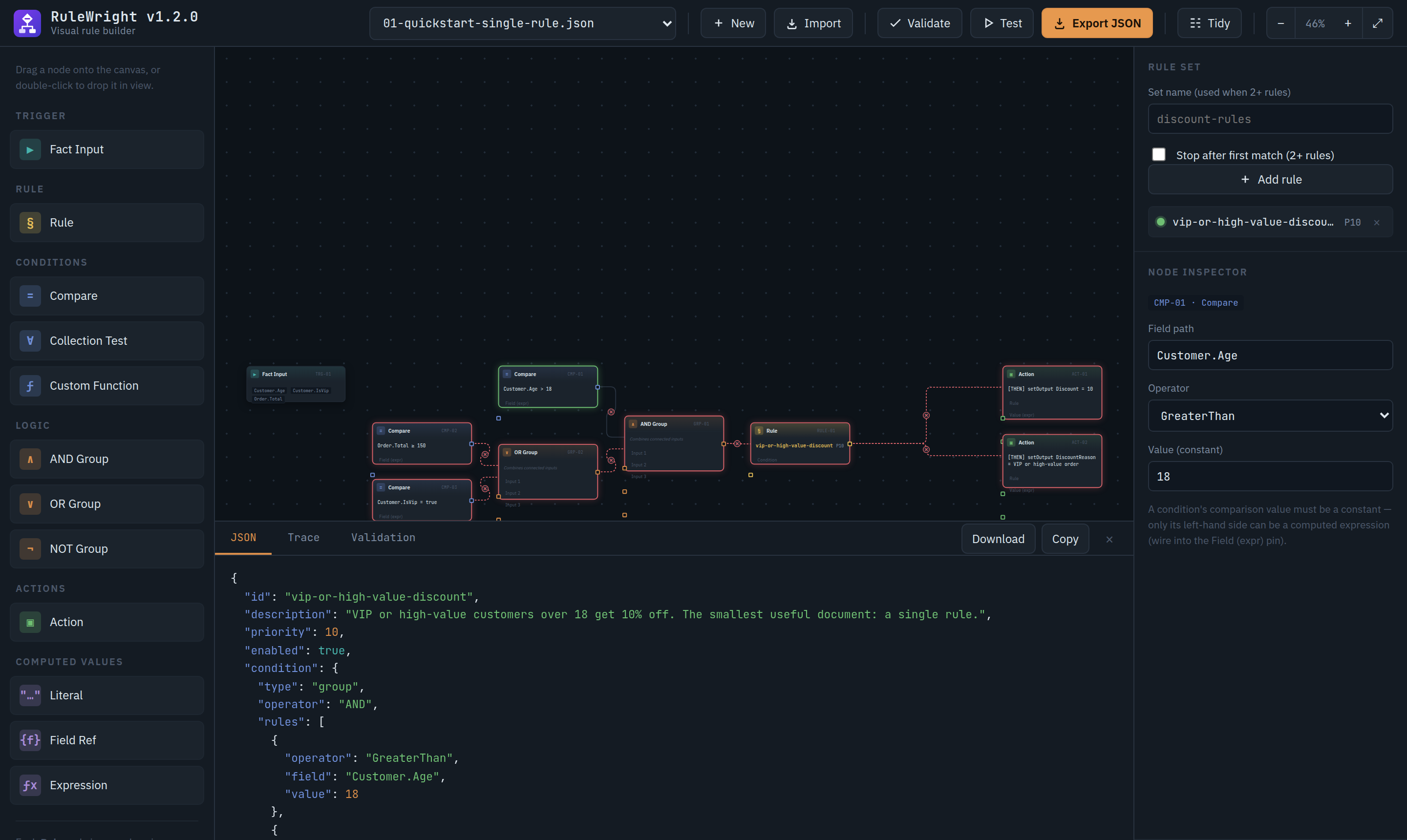

albahadly.github.io/rulewright

A plain RuleWright document. Load it with engine.LoadRuleSet, as in Your first rule, or serve it from a service, as in Host rules behind a web API.

To edit a document you already have, click Import and paste it. A single rule, a rule set and a decision table all rebuild on the canvas.

Step 7: Rule sets and decision tables

Load 10-decision-table-first.json. It is a shipping-cost table with hitPolicy: "first": it tries its rows top to bottom, and only the first row that matches applies. The builder expands the table into the rules the engine runs, one per row. Stop after first match is ticked, because that is what first means for the expanded set. Run a test with the default fact:

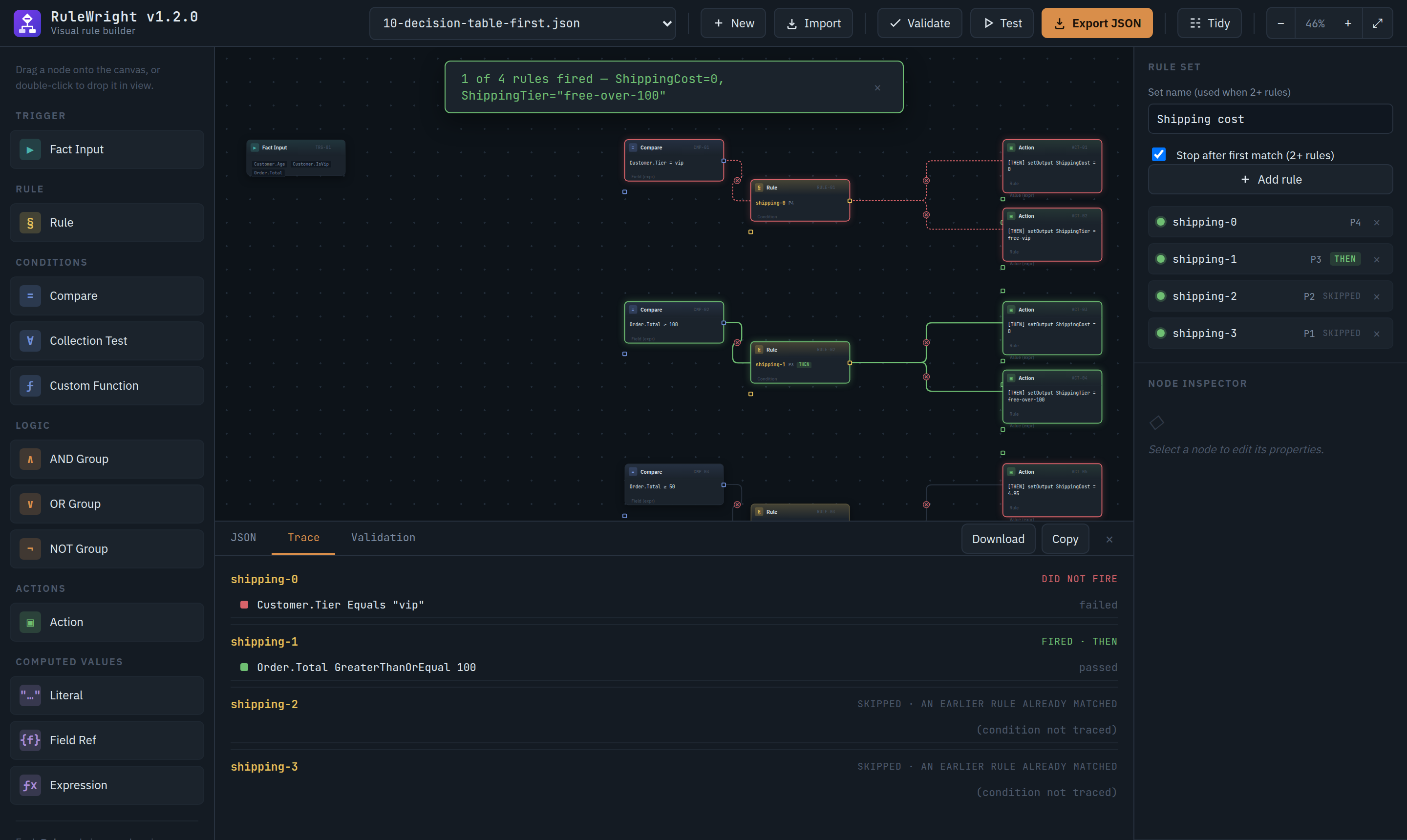

albahadly.github.io/rulewright

The customer has no Tier, so the VIP row fails. The 120 order matches the second row, and the last two rows are skipped, not evaluated.

Each rule's status in the rule-set panel on the right (THEN, SKIPPED) and its line in the trace tell you exactly which row decided the result. Decision tables covers the hit policies, and Rule sets covers priority and stopping.

Where the builder comes from

The builder is a sample in the RuleWright repository, samples/RuleWright.Sample.BlazorBuilder. It's a Blazor WebAssembly app that calls the engine for Test and Validate, and it's redeployed whenever the sample changes. It is also a complete example of an editor built on RuleWright's closed vocabulary. Serve the vocabulary to an editor explains how to build your own.

The builder stores each node's position in the rule's layout key. The engine ignores that key and leaves it out of the content hash, so moving a node never changes how the rule runs.

Next steps

• Test your rule documents: keep the cases you tried here as tests.
• Conditions: every operator the Compare node offers.
• Computed values: what the Expression, Field Ref and Literal nodes build.
