Tutorial: Generate invoices with mail merge

Take a Word invoice template with merge fields, merge a list of orders into it with a repeating table of line items, and save one document holding every invoice as both DOCX and PDF.

DocWright.MailMerge 15 minutes

You will learn to:

• read the merge fields and regions a template contains, and validate it before merging
• map your own C# types to merge fields in a way that is safe for trimming and NativeAOT
• repeat a table row once per line item with a TableStart/TableEnd region
• produce one invoice per order, each starting on a new page

Before you start

Add the mail-merge package to a project that already references DocWright:

dotnet add package DocWright.MailMerge

Step 1: Look at the template

A merge template is an ordinary .docx. Its author inserts merge fields in Word (Insert › Quick Parts › Field › MergeField), and they appear as «FieldName». Download the template this tutorial uses: invoice-template.docx.

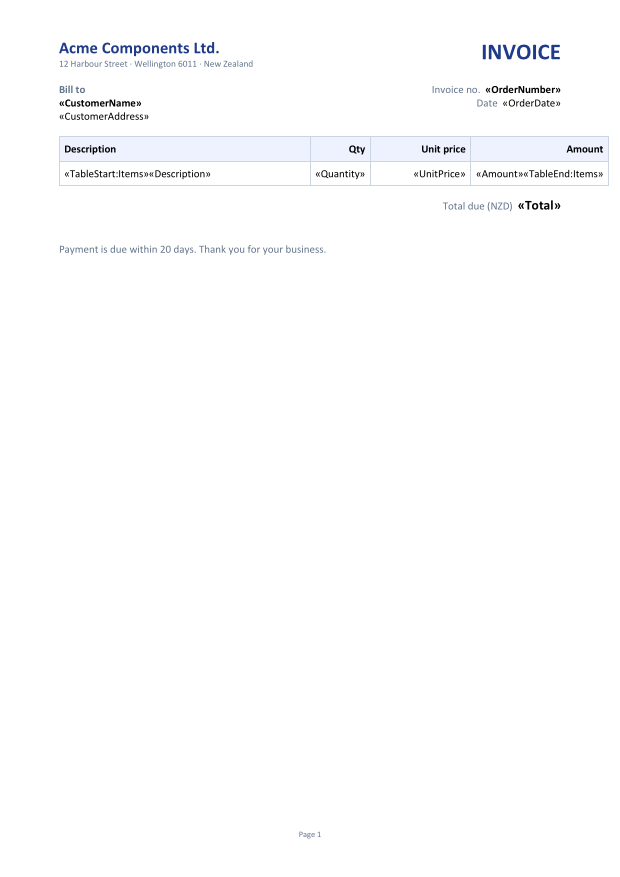

invoice-template.docx

The template. The table row starts with «TableStart:Items» and ends with «TableEnd:Items», which makes it a repeating region: the row is copied once per line item.

Two kinds of field appear in it:

Field	Meaning
«CustomerName», «Total» …	Replaced by a value from the current record.
«TableStart:Items» … «TableEnd:Items»	Marks a region that repeats once per row of the record's Items collection. Placed in a table row, it repeats the row, not the whole table.

A field can carry a Word format switch. «Amount \# "#,##0.00"» formats the value with two decimals and thousands separators.

Step 2: Describe your data

These are ordinary C# records. An order has a collection of lines, and that collection feeds the Items region:

public sealed record Order(
    string Number,
    DateTime Date,
    string Customer,
    string Address,
    IReadOnlyList<OrderLine> Lines)
{
    public decimal Total => this.Lines.Sum(l => l.Amount);
}

public sealed record OrderLine(string Description, int Quantity, decimal UnitPrice)
{
    public decimal Amount => this.Quantity * this.UnitPrice;
}

And some orders to merge:

using System.Globalization;
using DocWright;
using DocWright.Dom;
using DocWright.MailMerge;

var orders = new List<Order>
{
    new("INV-1001", new DateTime(2026, 9, 1), "Harbourside Dental", "4 Quay Road, Auckland",
    [
        new("Sterilisation trays", 12, 38.50m),
        new("Examination gloves (box of 100)", 40, 11.90m),
        new("Dental mirrors", 25, 6.75m),
    ]),
    new("INV-1002", new DateTime(2026, 9, 3), "Kōwhai Veterinary Clinic", "88 Rata Street, Nelson",
    [
        new("Surgical drapes", 30, 4.20m),
        new("Suture kits", 15, 22.00m),
    ]),
    new("INV-1003", new DateTime(2026, 9, 4), "Southern Lakes Physio", "2 Ardmore Street, Wānaka",
    [
        new("Treatment table covers", 50, 3.10m),
        new("Resistance bands, assorted", 20, 9.95m),
        new("Hot and cold packs", 16, 14.50m),
        new("Massage oil, 1 L", 6, 27.80m),
    ]),
};

Step 3: Map, validate and merge

using System.Globalization;
using DocWright;
using DocWright.Dom;
using DocWright.MailMerge;

// 1. Map template field names to your data. Explicit accessors are trim- and AOT-safe.
var culture = CultureInfo.GetCultureInfo("en-NZ");
var map = new MergeFieldMap<Order>()
    .Add("OrderNumber", o => o.Number)
    .Add("OrderDate", o => o.Date.ToString("d MMMM yyyy", culture))
    .Add("CustomerName", o => o.Customer)
    .Add("CustomerAddress", o => o.Address)
    .Add("Total", o => o.Total)
    .AddRelation("Items", o => o.Lines, new MergeFieldMap<OrderLine>()
        .Add("Description", l => l.Description)
        .Add("Quantity", l => l.Quantity)
        .Add("UnitPrice", l => l.UnitPrice)
        .Add("Amount", l => l.Amount));

var converter = new DocWrightConverter();
using WordDocument document = converter.Load(File.OpenRead("invoice-template.docx"));

// 2. Check the template before binding any data.
document.ValidateMergeRegions();
Console.WriteLine("Fields:  " + string.Join(", ", document.GetMergeFieldNames()));
Console.WriteLine("Regions: " + string.Join(", ", document.GetMergeRegionNames()));

// 3. Merge: one invoice per order, each starting on a new page.
MergeResult result = document.Execute(
    MergeDataSource.FromObjects(orders, map),
    new MailMergeOptions
    {
        Culture = culture,   // formats numbers; never taken from the machine
        RecordSeparator = MergeRecordSeparator.PageBreak,
    });

Console.WriteLine($"Merged {result.RecordsMerged} invoices, {result.FieldsMerged} fields.");

// 4. Save the merged document as Word and as PDF.
using (FileStream docx = File.Create("invoices.docx"))
{
    converter.Save(document, docx);
}

using (FileStream pdf = File.Create("invoices.pdf"))
{
    converter.Convert(document, pdf);
}

Output

Fields:  Amount, CustomerAddress, CustomerName, Description, OrderDate, OrderNumber, Quantity, Total, UnitPrice
Regions: Items
Merged 3 invoices, 51 fields.

Here is what each step does:

1. Map the fields. MergeFieldMap<T> pairs each field name in the template with an accessor on your type. AddRelation names the collection that feeds a region, with its own map for the child rows. Names match case-insensitively. Explicit accessors keep working when your application is trimmed or compiled with NativeAOT; MergeDataSource.FromObjectsByReflection is the reflection-based shortcut for everything else.
2. Validate the template. ValidateMergeRegions throws MergeTemplateException, naming the region, when a region is malformed, for example opened and never closed. Run it when a template is uploaded, while its author is still there to fix it. GetMergeFieldNames and GetMergeRegionNames list what the template asks for.
3. Merge. Execute walks the records and appends one filled copy of the template for each, separated by RecordSeparator. It returns a MergeResult with counts, plus UnmergedFieldNames: any field the data had no value for, which is almost always a typo in the template.
4. Save. The merged document is an ordinary WordDocument. Save it as DOCX, or render it straight to PDF.

The result

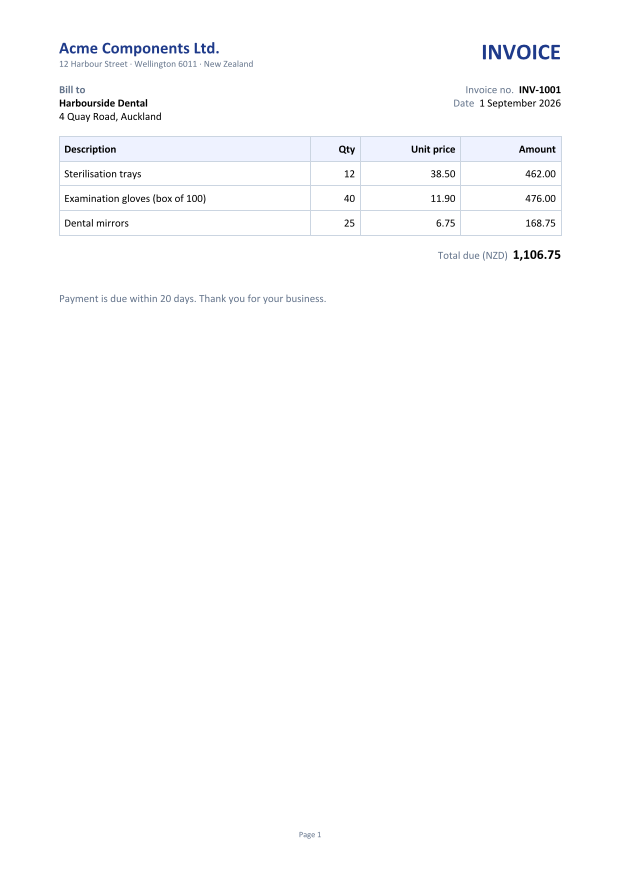

invoices.pdf · pages 1 and 3 of 3

Page 1: INV-1001

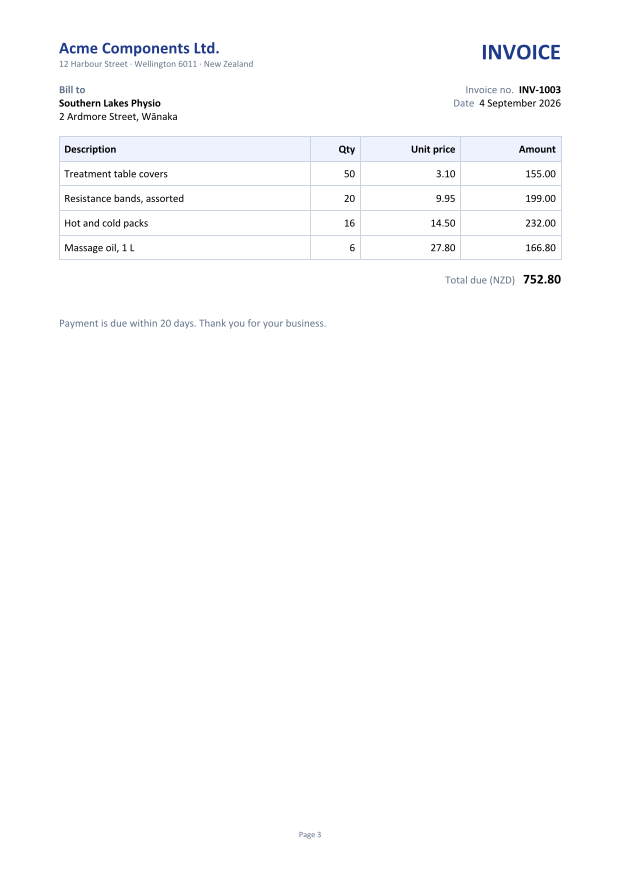

Page 3: INV-1003

Each order gets its own page, and the line-item row repeats once per line: three rows on the first invoice, four on the last. Download the output: invoices.pdf · invoices.docx.

Choices worth making

Important

Set the culture explicitly. MailMergeOptions.Culture defaults to the invariant culture, never the machine's. That way an invoice total formats the same on a server in Istanbul as on your laptop. Set it to the culture your customers read.

Tip

Format dates in the map. Pass a date as the exact text you want, for example o.Date.ToString("d MMMM yyyy", culture), rather than relying on the field's \@ date switch.

Option	Default	Use it to…
RecordSeparator	PageBreak	Use SectionBreak when each copy needs its own headers or page setup, or None for labels and lists.
UnmergedFields	Keep	Remove fields the data had no value for: RemoveField keeps their text, RemoveFieldAndText removes both.
RemoveEmptyParagraphs	true	Drop a line that held only an empty field, such as a missing second address line.
RemoveEmptyGroups	false	Remove a region whose collection was empty, instead of leaving its template row behind.
MaxRecords	0 (no limit)	Cap the output when the data comes from outside. The walk stops quietly at the cap, so compare RecordsMerged yourself.
FieldMerging	null	Change a value just before it is written, for example to show "—" for a missing total.
ImageResolving	null	Supply images for image merge fields. DocWright never fetches a URL or path from a template itself.

Other data sources

MergeDataSource also merges from dictionaries (FromDictionaries, or FromDictionary for a single letter). Anything else, such as a DataTable or a DbDataReader, plugs in through IMergeDataReader, a four-member interface shaped like DbDataReader. The mail-merge package therefore never depends on System.Data. The mail merge data sources guide shows an implementation.

Next steps

• Fill a {{placeholder}} template from JSON for templates written with plain text markers instead of Word fields.
• Build a report in code when there is no template at all.
